Features

■ European Standard Process

Following international standards and European technologies

Belting technologies origin from 50 years of European production experience

■ Production Equipment

Industry leading complete intelligent production lines

■ Long Service Life

Stable belting performance and long service life

Market share of 5-year service life belts over 70%

■ Footprint

Exported to over 50 countries and regions worldwide

Capability

■ Belt Width: 300-2400mm

■ Sidewall Height: 40-630mm

■ Cleat Height: 35-600mm

■ Belt Strength: 250-7500N/mm

Automated Precise Buffing/Cutting

■ High accuracy delivers precise processing dimension

■ Excellent buffing effect results in higher adhesion

■ High efficiency enables high productivity Safer environment-friendly

■ Safer & environment-friendly

Hot Vulcanization Assembly

■ The sidewall, cleat and base belt are hot vulcanized to achieve high adhesive strength

■ Reliable bonding and excellent surface smoothness

■ Sidewall and cleat will not come off due to high temperature

Rubber Cover

■ Abrasion-resistant

■ Cold-resistant

■ Acid & Alkali-resistant

■ High/Moderate Oil-resistant

■ Heat- resistant  (100/125/150/180℃)

■ Flame -retardant

■ Other Customized Types

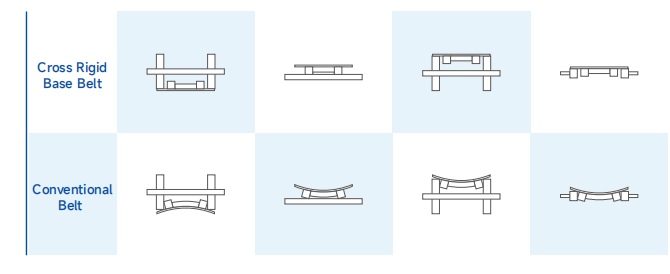

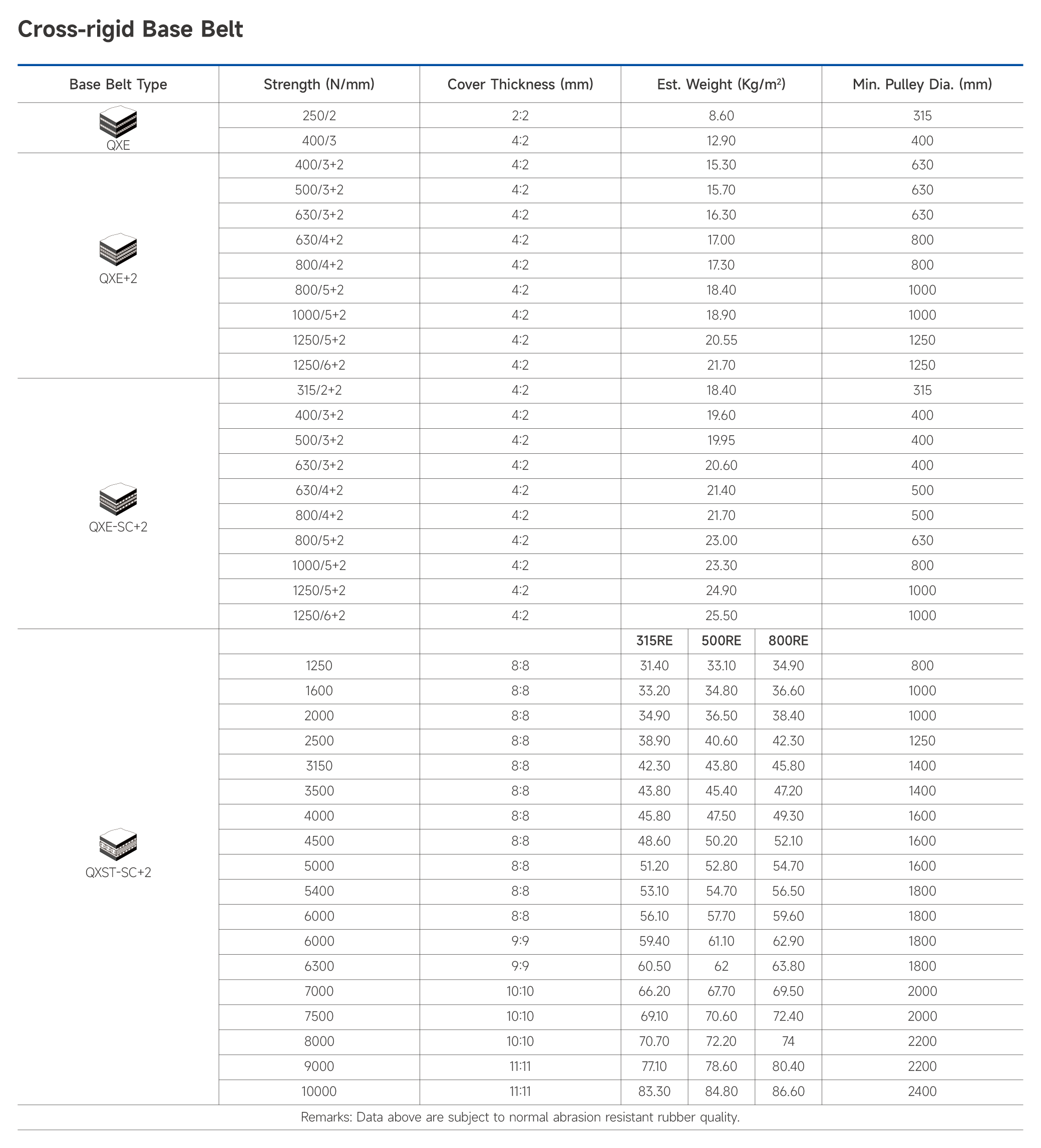

 Cross Rigid Base Belt

■ Corrugated sidewall conveyor belts require certain tensile strength and wear resistance.

■ In order to meet the requirements of angle change, the base belt is required to be flexible in the longitudinal direction and shall have certain rigidity in the transverse direction.

■ QBF corrugated sidewall conveyor belt adopts the cross rigid base belt with a special structure, which solves the problem of belt deformation of large sized conveyor belts during the return process.

■ Note: The base belt width is the same as the ordinary and complies with international standards.

■ Corrugated sidewall conveyor belts require certain tensile strength and wear resistance.

■ In order to meet the requirements of angle change, the base belt is required to be flexible in the longitudinal direction and shall have certain rigidity in the transverse direction.

■ QBF corrugated sidewall conveyor belt adopts the cross rigid base belt with a special structure, which solves the problem of belt deformation of large sized conveyor belts during the return process.

■ Note: The base belt width is the same as the ordinary and complies with international standards.

Features

■ Specially designed rubber compound delivers excellent flexing and fatigue resistance.

■ Sidewall is incorporated with fabric reinforcement to effectively prevent cracks.

■ European standard dynamic fatigue testing simulates on-site working conditions to ensure product reliability.

Rubber Cover

■ Abrasion-resistant

■ High/Moderate Oil-resistant

■ Heat- resistant (100/125/150/180℃)

■ Cold-resistant

■ Acid & alkali-resistant

■ Flame-retardant

■ Other Customized Types

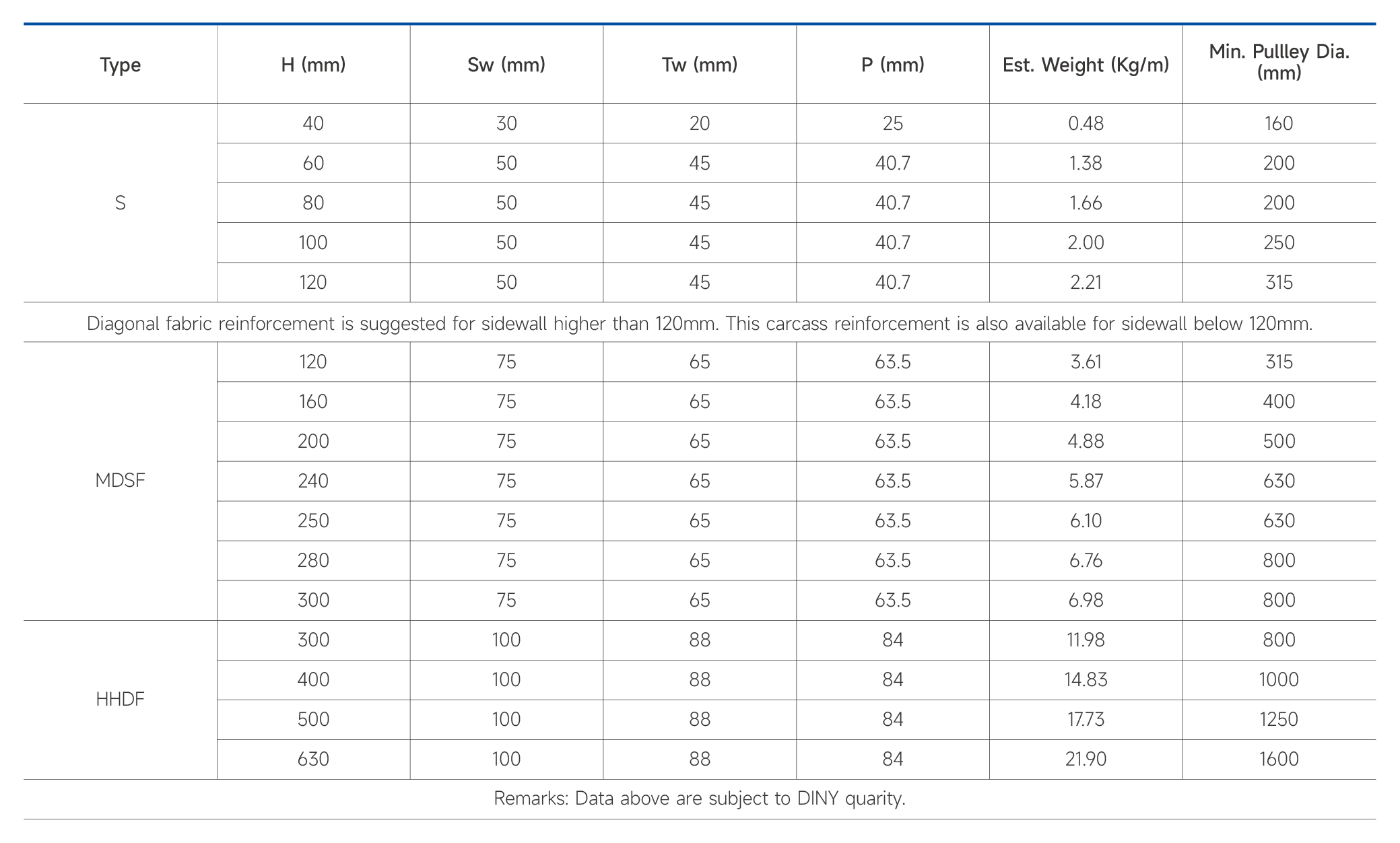

Sidewall Type

Features

■ European standard processes and molds.

■ Special rubber compound to enable excellent abrasion resistance and long service life.

■ High stiffness for excellent impact resistance.

■ Small deformation under pressure.

■ Optimized design to accommodate more materials in vertical lifting operation.

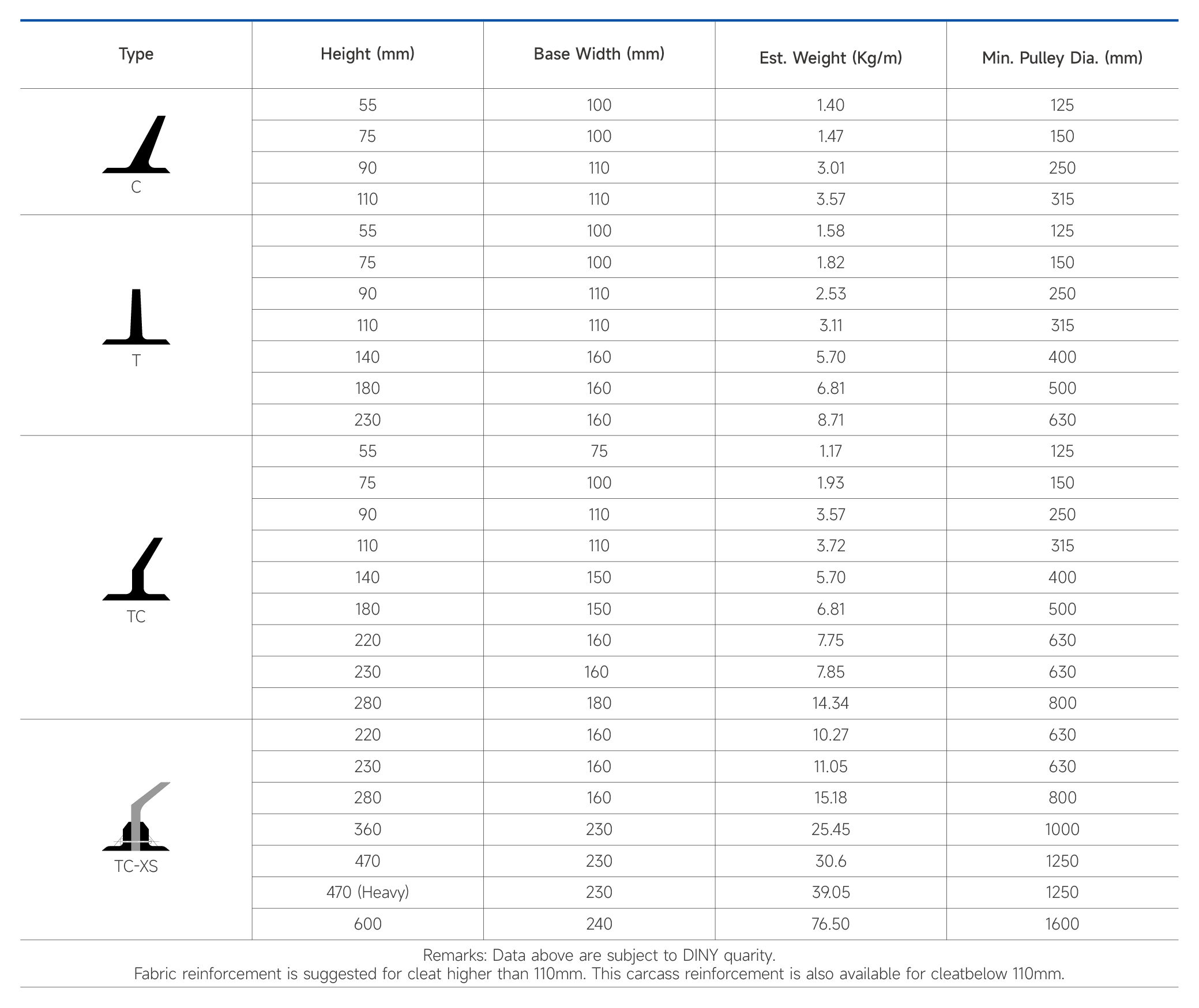

Cleat Type
